Original Tango Transponder Key Programmer Full Version Support All Key Lost with One Year Free Subscription
Original Tango Key Programmer lighlights FREE update onlineLatest Version: V1.116Supports Daihatsu G Chip Function(Need to pay)After generating a new transponder with TANG0 Programmer, you will not need any additonal diagnostic equipment to program the generated transponder to the car! lt will starthe car directly, even on new FlAT CODE 2 system, also used in PSA Group vehicles! Onlyou have to write the new file back into the immobilizer system!otice:Connect TANG0 to computer with internet, start the software to [help]>>[check update]then you can update Tango to latest software.Please visit Tango offcial website and update within 28 days, or it will get lockedIf you want to get authorization for special functions or cars, please refer to offical website too.if your Tango already get G chip authorization, it can only generate G chip 10 timesper day.Tango Key Programmer Features:TangoPlus Subaru Smart Key(Page1 F1,F3)Systems 0BD frameworkoyota-H lmmobilizer All Keys Lost solution(Gen1 MCU 11910 &Gen2 MCU 12xxx)-ango +Barracudaallmarkets)Toyota-H lmmobilizer All Keys Lost solution(Gen1 MCU 11910)-SLK-06(all markets);lonning of Toyota H-key [Blade](128bit)on LKP-04Toyota/Lexus Smart Key Systems 0BD FrameworkToyota G lmmobilizers 0BD Reset & Add Key(including EU type)Tovota/Lexus H Keys lmage Generation Page1 39,59,5A,99,3A,7A on TRPWS21 transpondeoyota/Lexus G Keys lmage Generation and Clonning Page1 19,36,56,96,37,57 on LKP-02, CN5oyota/Lexus/Subaru SmartKey Reset(40/80/128bit)FREE Off-line Full Copy Of TIRIS DST(ID60-70)onto TPX2,EH2, CN2, CN5, LKP-02FREE lmage generator lD70 on lD4DImage generator lD67/68 on lD4DFullFREE production of TP22,TP23, TP24, TP25Free write Component Security 7 bytes Tool(Megamos48)Over 1142 Key Makers,793 included with basic softwareIn-depth Manual and Technical Support ProvidedSearching of the 7th byte by existing car's key(Megamos48)
Key Maker Usage.
Key maker usage consists of a four steps. The 4-th step is additional and depends on a vehicle model.
1. Open an immobilizer dump file.
2. Choose number of the key you want create.
3. Place a transponder into the coil and click the WRITE button.
4. In some cases the program asks you to save a modified immobilizer dump. This dump must to be written into the immobilizer.
First of all, take a look at this picture. The "Loaded File" window displays the immobilizer file name. Ensure that a valid dump is stored. The "Maker" window displays selected maker name. Ensure the right key maker selected.
The "info" windows display an important information:
- Original transponder---Informs you about type of the original transponder
- Allowed transponder---Informs you what type of transponders is suitable for the key maker
- Data location---The immobilizer memory may be stored in various chips, the description informs you about from where you have to read a dump. Some immobilizers can have various chipsets. In this case the field displays several possible chips. Find one of them inside of the immobilizer and read it.
- Data size---Each chip has certain memory size, the key maker accepts files with the described size.
- Data format---This field appears in case of 93CXX eeprom seria.
There are two standards of data layout:
Intel format and Motorola format or Little Endian and Big Endian respectively.
The data layout depends on a chip-programmer that is used for eeprom reading.This field informs you what kind of format is suitable for the key maker.Usually you can see that both formats are suitable. It means that the program can understand any data layout.
How to use Tango Key Programmer
- Firstly, run the key maker interface according to the vehicle and read information in the "Info" window. Watch theData location field describes the memory chip. Find out the chip inside of the immobilizer and read it. Save the read data (dump).
- Click the "OPEN IMMOBILIZER FILE" button and load the saved dump.
- The program will analyse the dump.
- If the dump is correct the "WRITE" button will become active and the "Keys" window will display the range of key numbers that can be created.
- Take a look at the "Info" window, the Allowed transponder field.
- Ensure you use a transponder exactly the indicated type.
- Place the transponder into the coil.
- Choose the key position you want create in the "Keys" window.
- Click the "WRITE" button.
- This starts the writing process and transponder will be stored with the appropriate data.
- At this point you may be asked to save a new immobilizer dump.
- The program displays a standard File Save dialog where you have to save the data.
- After this you will be informed about the new data saved and must be written into the immobiliser.
Write the new dump into the immobilizer. Now it is ready to operate with the created transponder.If you are not asked to save a new file, it means that immobilizer is ready to operate with the created transponder without file replacing.
Finish

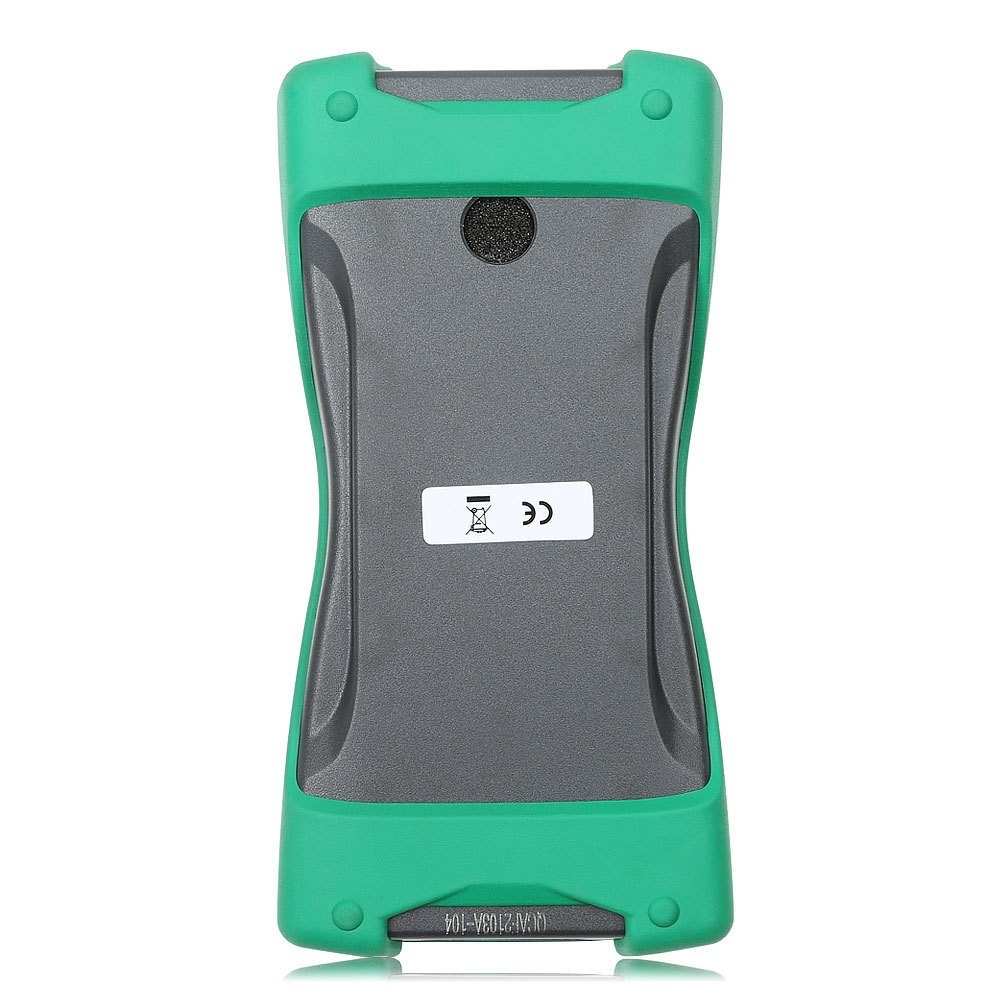

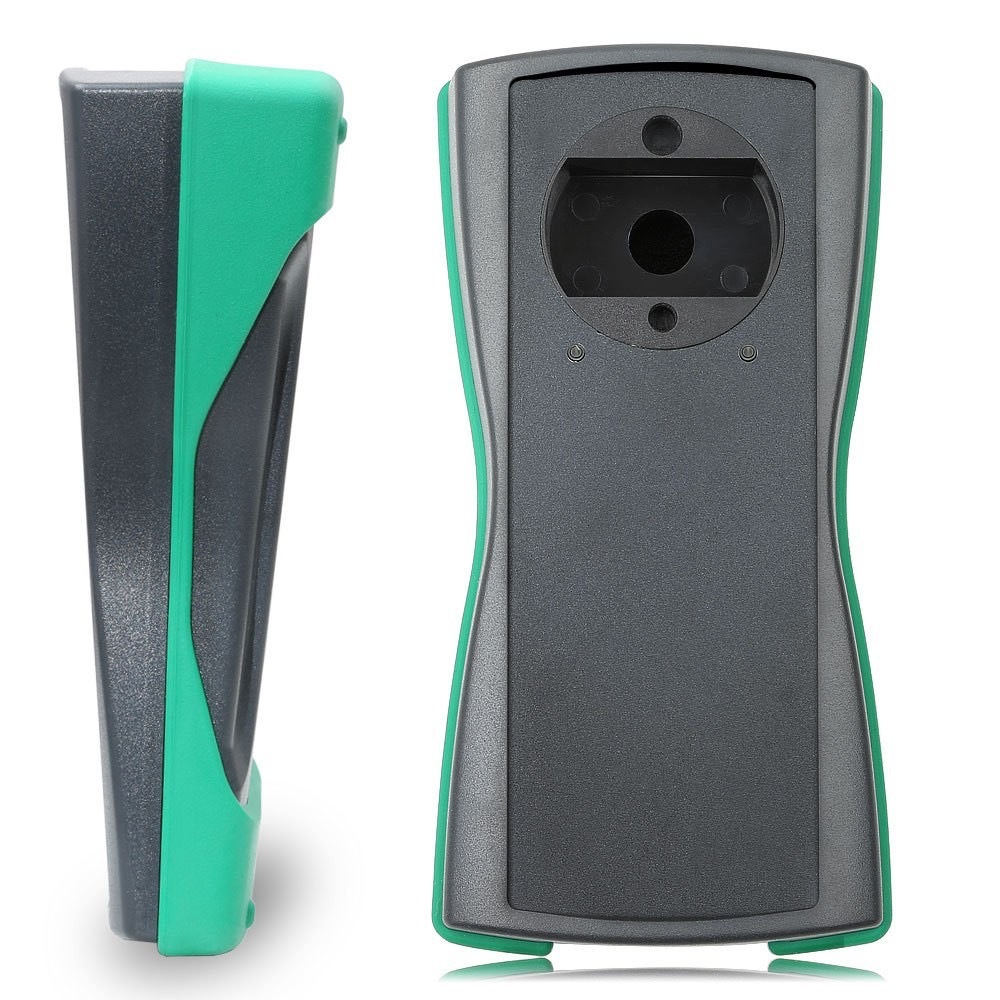

1. ABS plastic enclosure: ingress protection IP65/DIN EN 60529
2. Rubber seal: prevents sliding on a workbench shock-proof function

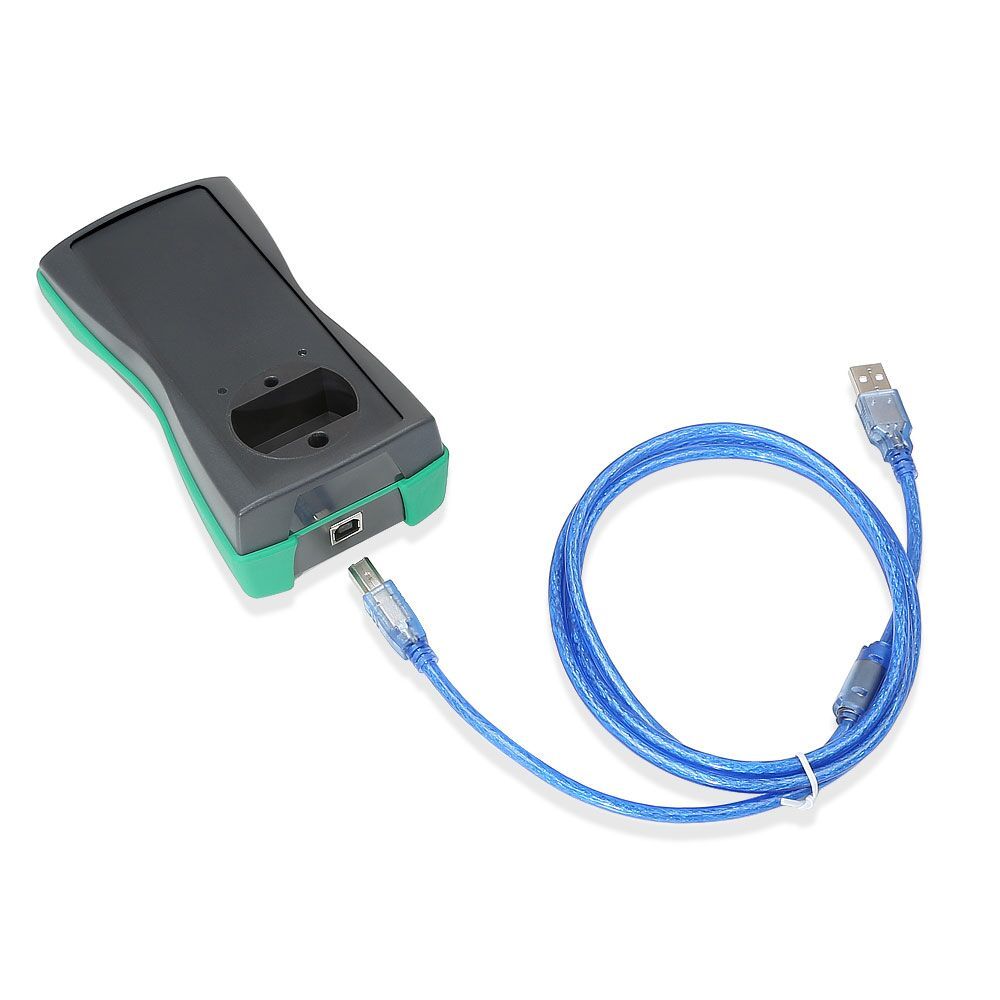

3. USB connection: no external power
4. Big hole: adopted to large keys
5. Three small holes: adopted to various sizes of transponders
