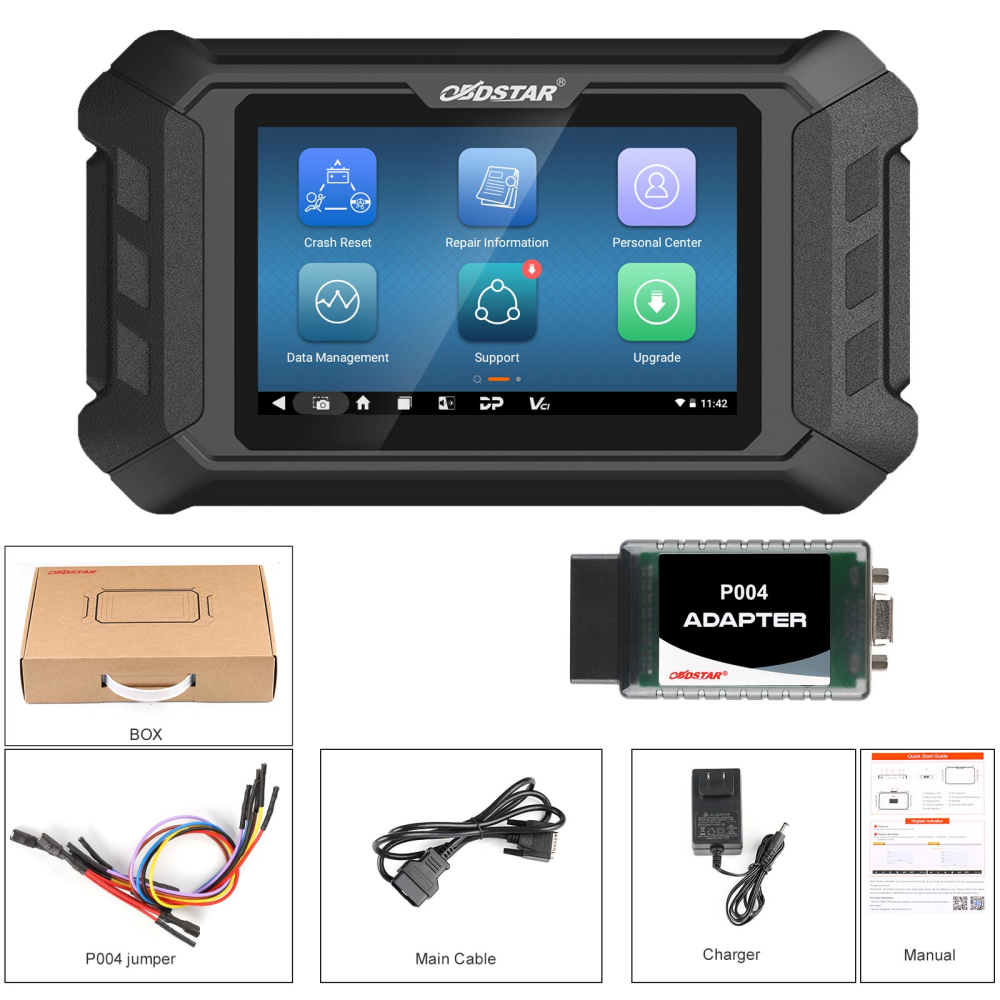

OBDSTAR P50 Airbag Reset Tool + PIN CODE+ Authorization for Cluster Calibration/Oil Light Reset Function
How to Use OBDSTAR P50?
Please register the device before use.
The general operation steps are as follows:
1. Read the part number---To see if it reads the correct number
2. Read fault codes---Check whether there is an airbag crash fault
3. Clear the fault code---Some car models airbag fault codes can be cleared by clearing the fault codes directly
4. If reading EEPROM is supported, please read EEPROM
5. Clear the crash record
6. If there is a write VIN function, write VIN (very few VIN information of Ford and Renault models will be cleared when clearing the fault codes)
7. Clear the fault code
8. Read the fault code---To confirm that the fault has been cleared successfully
OBDSTAR P50 is the new generation of intelligent airbag redefining equipment. With powerful functions and wide coverage, it covers 38 types and over 3000 ECU part No., some MCU.

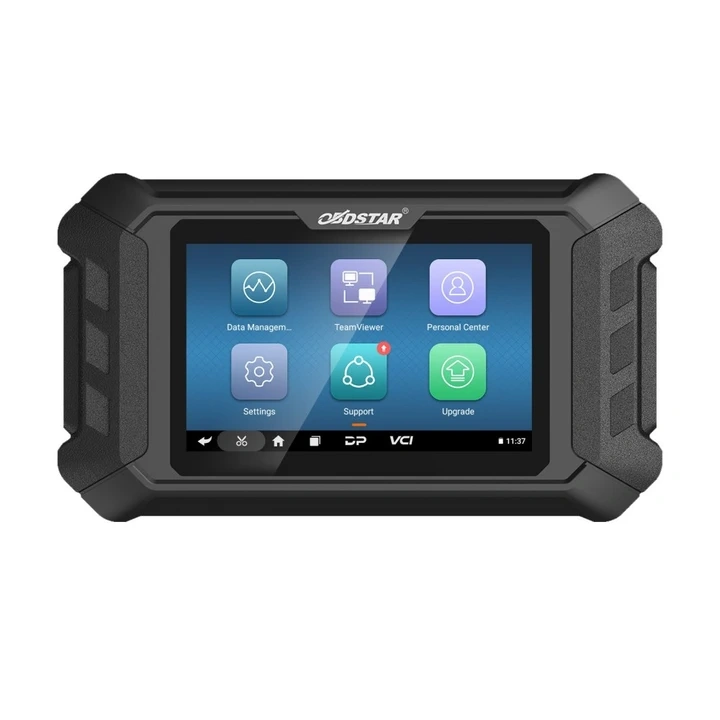

OBDSTAR P50 is based on RK3128 quad-core processor, extremely fast and smooth; equipped with 5-inch capacitive touchscreen.
Functions:
1. Supports one-click airbag reset for 38 brands and more than 3000 ECU part No.
2. Supports fuzzy search for ECU part No.
3. contains clear diagram of BANK mode
4. Contains powerful and complete fault code description files
More features are under development...
Advanced functions:
ECU information.
Read DTC
Clear DTC
Read EEPROM
Write EEPROM
Read FLASH
Write FLASH
Delete Beat
Write VIN
...
