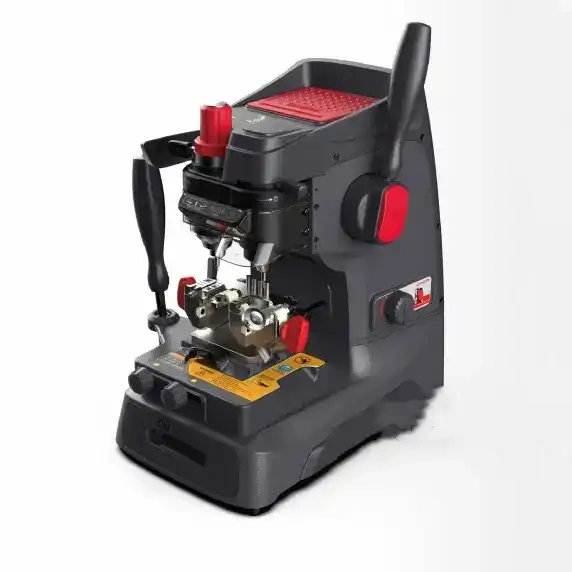

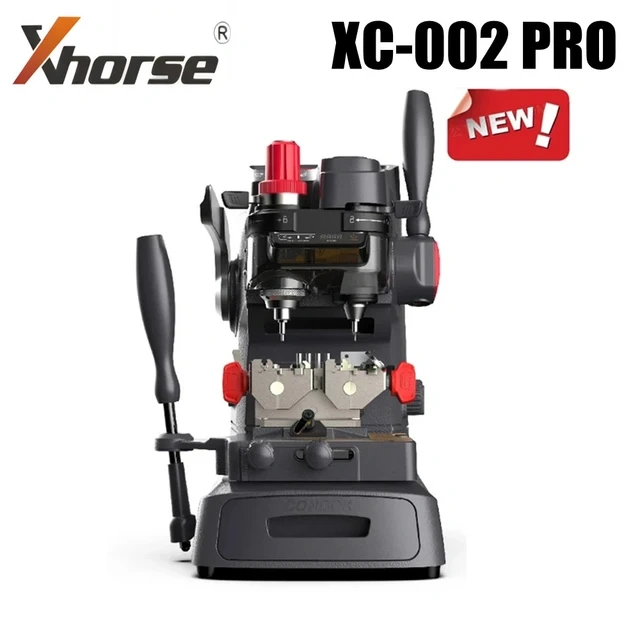

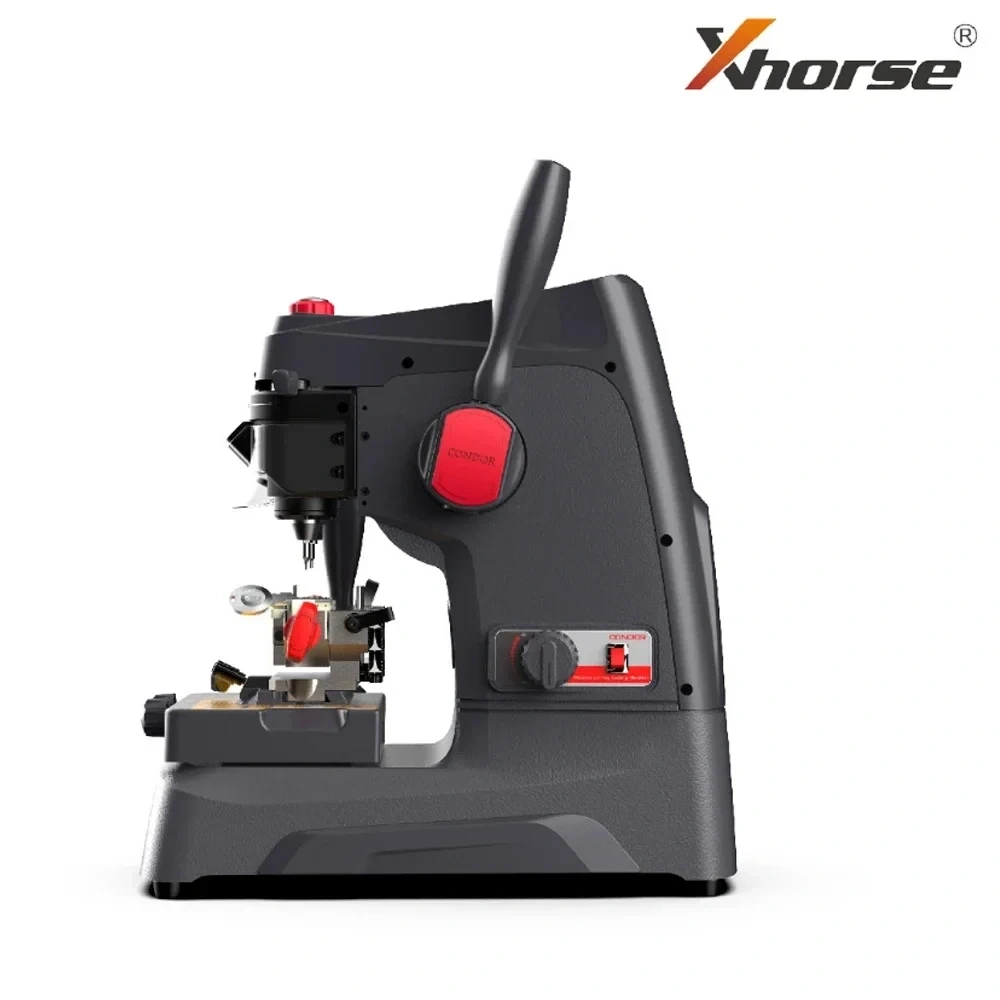

Xhorse Condor XC002 XC-002 Pro Ikeycutter Mechanical Key Cutting Machine Supports Internal Milling Punching
Ergonomic Design
Ergonomic design brings users an extraordinary working experience.
Based on deep research on users' operation habits, CONDOR XC-002 PRO has been greatly optimlzed regarding its materlals, handle radian,grip, touch, control, and cutting operation.
With built-in indicator light, you can level the probe and the cutter at ease, An itelligent LCD screen displays the spindle speed for your convenience.
Multiple Modes
Multiple gears llow users to adjust the spindle speed in accordance with their needs to elevate efhciency and prolong its service life.
Standard mode and dimple mode are introduced to streamline cutting for both dimple keys and ordinary keys.
Standard Mode: In this mode, the probe can not move up and down and remains stationary, ideal for cutting various key types such as double sided, single sided, 4 track external, 2 track external, 4 track internal, and channel track keys.
Dimple Mode: The probe is capable of vertical movement to detect the depth of the holes in the key. The mode is mainly used to duplicate dimple keys.
Support Key Types:
It will duplicate dimple, double sided, single sided, 4 track external, 2 track external, 4 track internal, channel track keys.
Each of the grooves has its recommended clamp mounting location.
- The left groove corresponds to point C
- The middle groove corresponds to point B
- The right groove corresponds to point A
Of course, you can also adjust the position of the clamp according to your operating habits.
Innovative Multi- function Clamp
The multi-function clamp equipped alows for cutting dimple keys of different angles (0- 45). Users can adjust the angle of clamp to finish cutting based on the original key. Currently, CONDOR XC -002 PRO supports duplicating standard single sided, double sided, 4 track external, 2 track extermal, 4 track intemal, channel track, and dimple keys with angles.
Reliable Mechanical Structure
CONDOR XC- -002 PRO is manufactured with reliable mechanical components, ensuring ultra-high precision duplication.
Its Korean-made retainer cage greatly maintains a good running status; Its British Renishaw online testing system spots flawless key cutting locations;
Covered with specialized coating, the cutter made of Japanese raw materials guarantees a long service life.
Masterful Craftsmanship
At the bottom of the machine, the storage box thoughtuly designed helps users store probes, cutters, and key blades.
The machine body forged by the all- aluminum die casting prooess (thermal treatment) ensures greater stabilty.
All the main components processed by the German- -made DMG CNC machine guarantee high- precision duplicating results.
High-speed Motor
After powering up the machine, when you press down the main handle, you can see the cutter actually is not spinning. It's a design What you need to do is turn on the cutter power switch on the left side and you can rotate the handle clockwise to achieve height locking of the probes and cutters.
CONDOR XC-002 PRO now offers seven speeds, which allows you to adjust the spindle speed in accordance with your needs to elevate efficiency and prolong its service life.
Cutting Platform with Limitation Knobs
- When two limitation knobs are fully released, the cutting platform can be moved freely.
- If we only tighten the right knob, the cutting platform can only move along Y-axis. However, when moving along the X-axis, the platform will always go back to its original position after you release the handle.
- If both knobs are tightened, the cutting platform can only move along Y-axis and the X-axis movement is completly locked.
This can help us when cutting some keys that require linear cutting.
Micro-adjust Guide
CONDOR XC-002 PRO features a high-precision micro-adjust knob and an indicator light, allowing you to easily finish the adjustment and further ensure duplication accuracy.
Probe & Cutters
CONDOR XC-002 PRO offers an easier way to install probes and cutters. There is no need to use an Allen wrench to install the probe and the cutter anymore. What we need to do is simply pull the lock switch to make sure it's unlocked.
