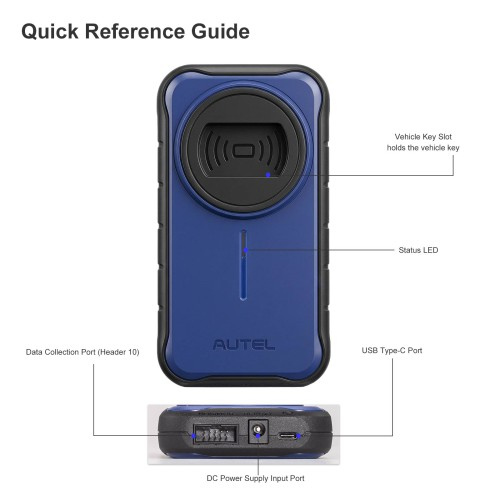

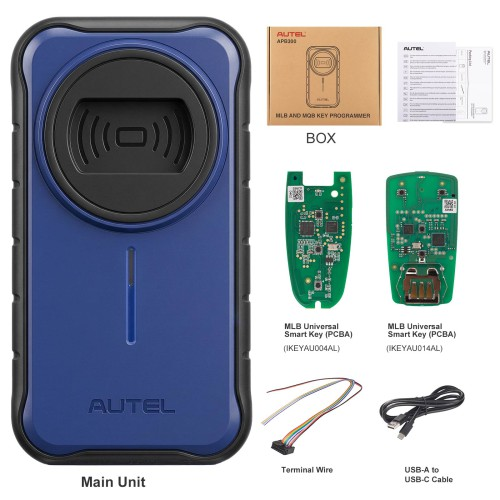

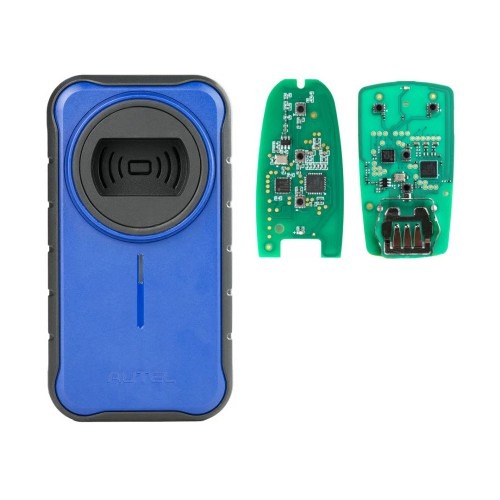

AUTEL APB300 Key Programmer With 2 Pieces of Key Boards For Volkswagen Group MLB & MQB Vehicles

Autel PowerScan PS100 Generation Description:

Autel PowerScan PS100 is the best electrical tester for reducing diagnostic time in all 6- to 30-volt vehicle electrical systems. After a simple hook-up of the tool to the vehicle's battery, you can:

1. Test for continuity with its built-in auxiliary ground lead.
2. Determine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another.
3. Test for poor ground contacts instantly without performing voltage drop tests. The tool is also short-circuit protected; its internal circuit breaker will trip if it becomes overloaded.
4. By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
5. Follow and locate short circuits without wasting fuses. The tool's long cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.

Autel PowerScan PS100 Features:

Circuit breaker protected
Extremely easy to use and highly reliable
Built-in Flashlight enables you to work in the dark
Instantly identifies positive, negative and open circuits
Instantly checks continuity of switches, relays and diodes
20ft (extendable) cable provides excellent accessibility to test along the vehicle
Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip
Simultaneously uses the hot lead and the ground lead to activate components right in your hand
Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation

Autel PowerScan PS100 Work Mode:

There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each
one.
DC Voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.

AC Voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. voltage, the Min. voltage, frequency and duty cycle.

Resistance
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.

Tone On/Off
While the tool in this mode, just do a quick press of the mode button to toggle the tone on or off. While quickly pressing (a quick press and release) the mode button, if a short high beep is heard, this means the audio tone is turned on. If a short low beep is heard, the audio tone is turned off.
